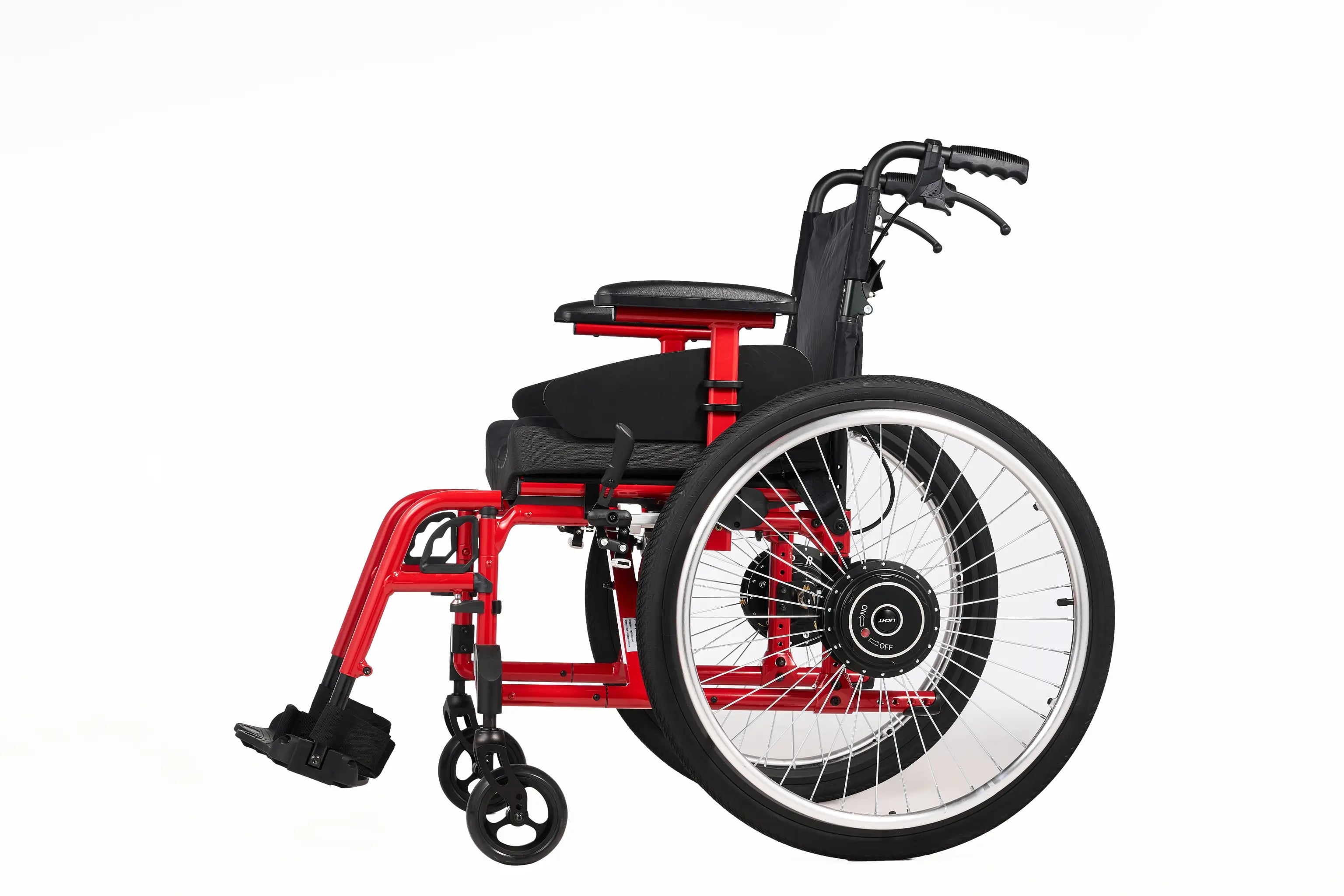

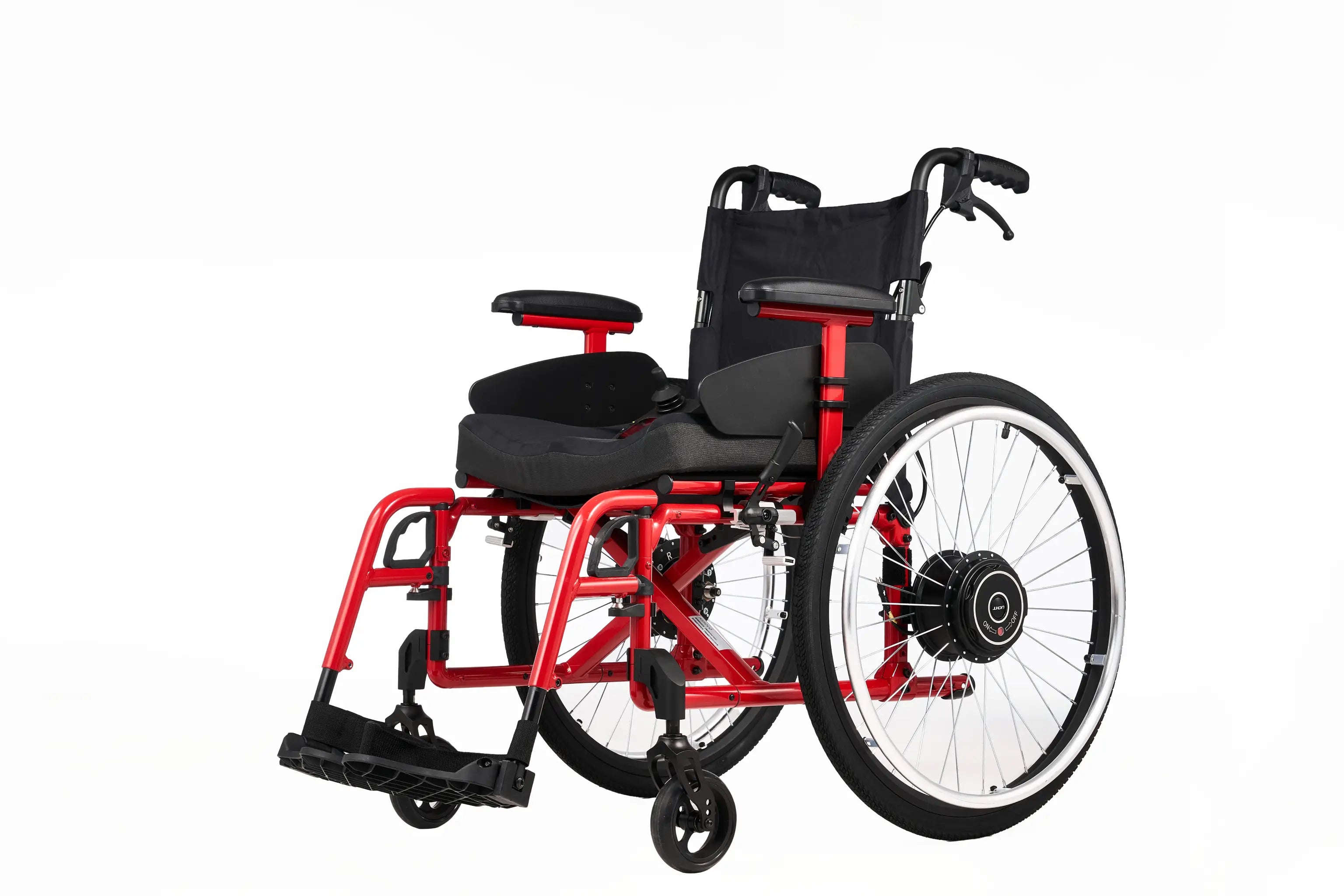

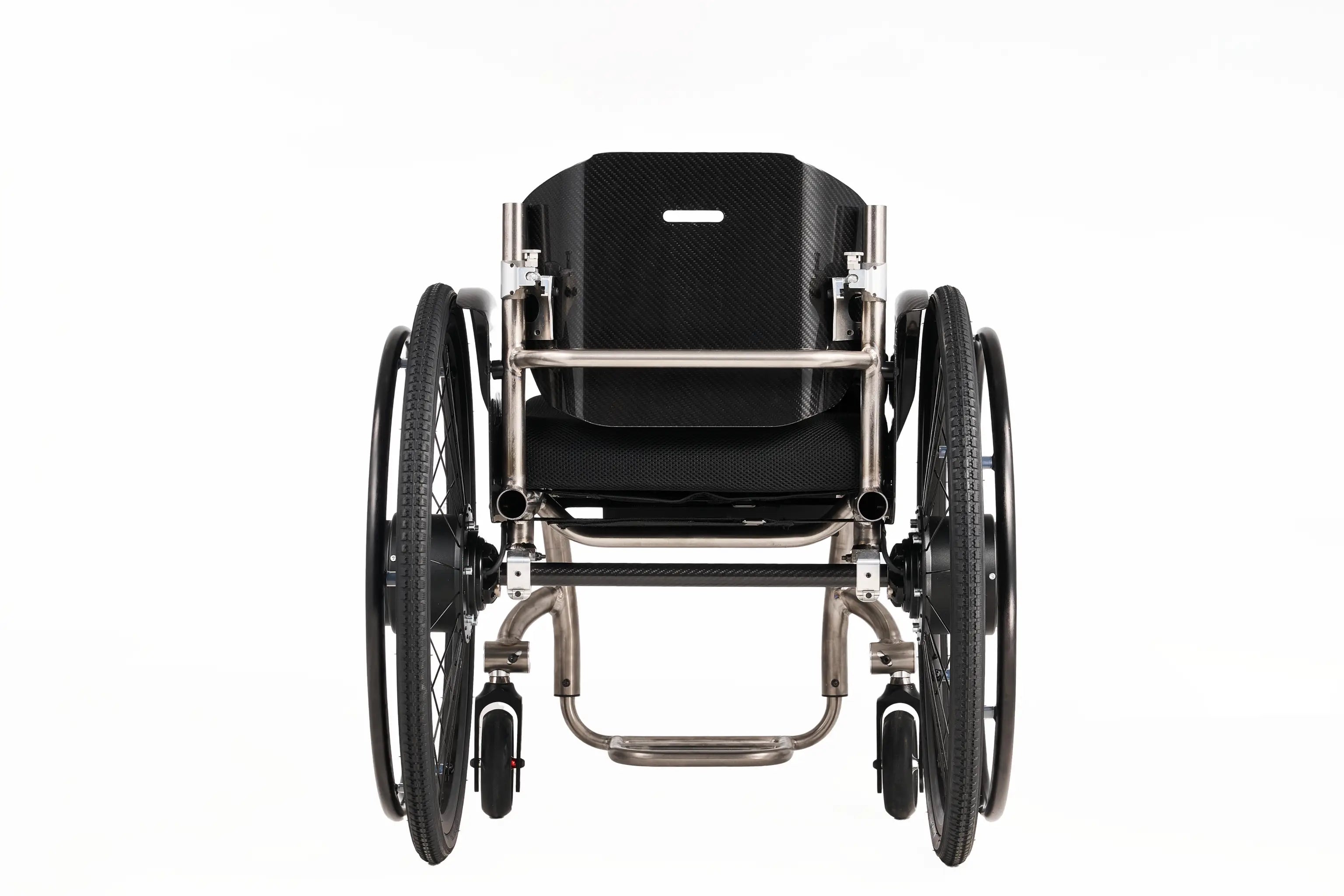

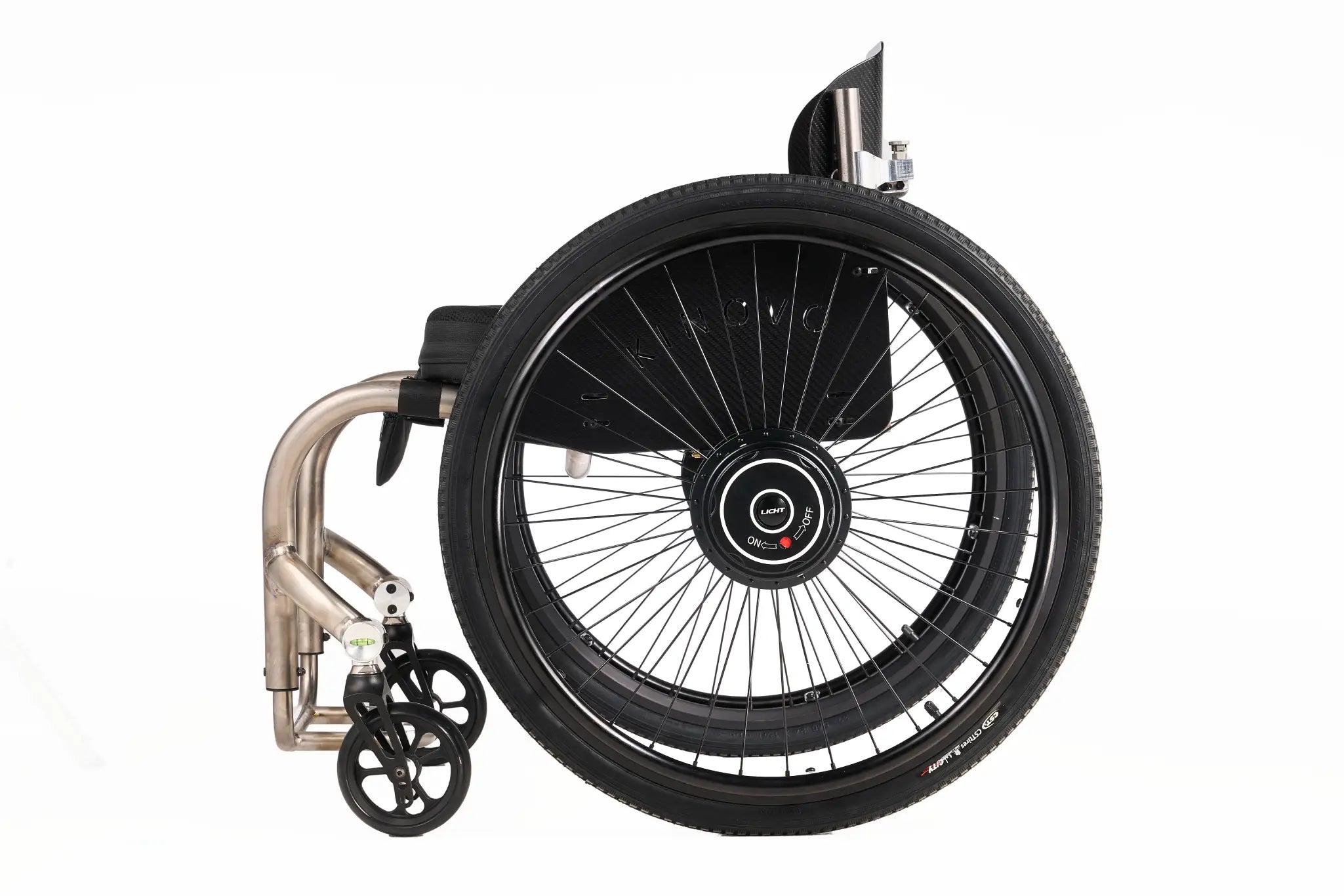

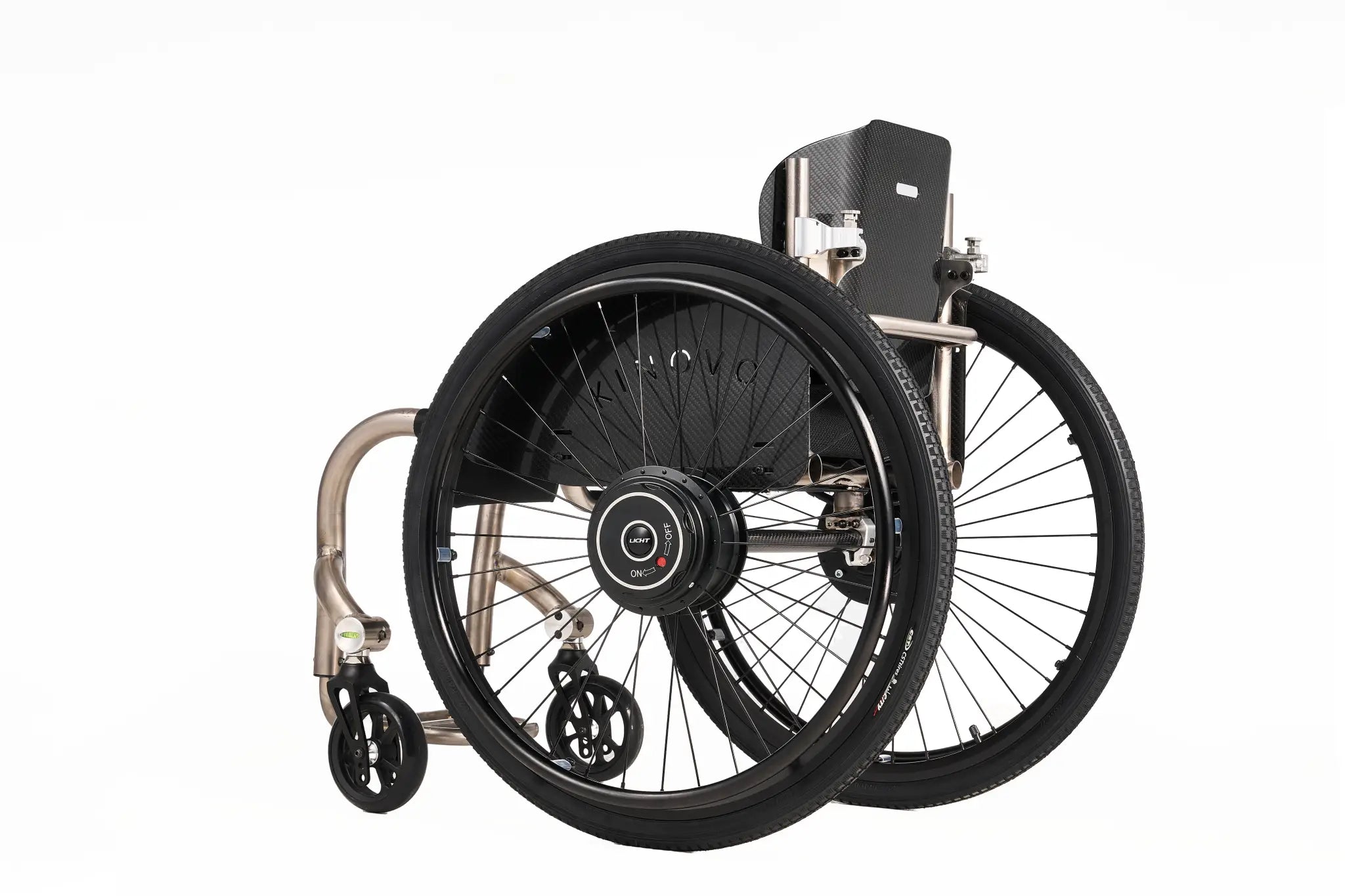

The Cruz Wheels—Quick-Release Hub Motor instantly converts a manual wheelchair into a powered wheelchair with smart, lightweight wheels. Featuring a simple quick-release design, joystick controller, and aviation-friendly lithium battery, it’s built for convenience, performance, and independence.

What’s Included

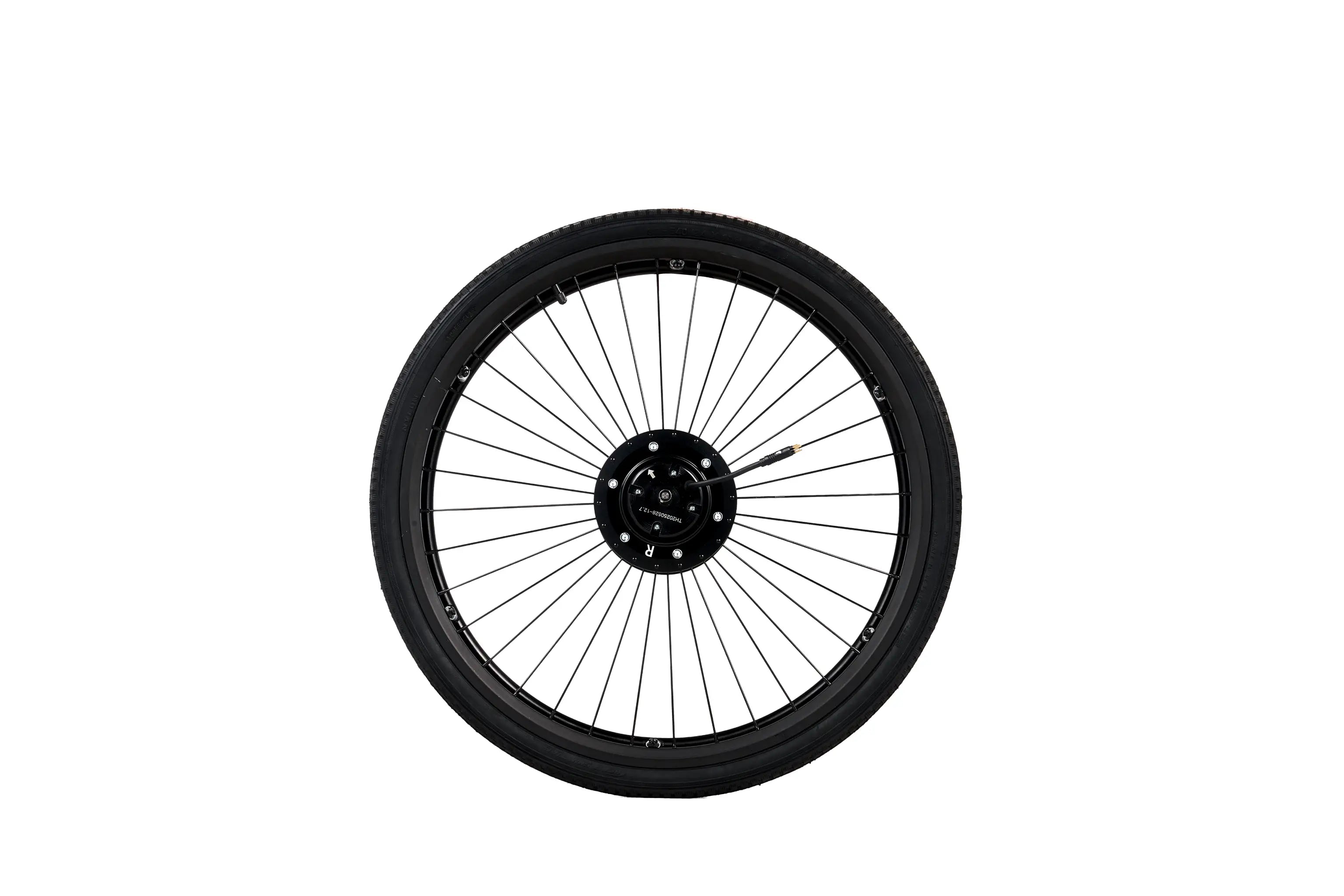

• Hub motor wheels—2 pcs

• Axle sleeve with mount bracket—2 pcs

• Backpack for power module & battery—1 pc

• Joystick controller—1 pc

• Joystick mount bracket—1 pc

• Power module—1 pc

• Li-Po 24V 6Ah battery—1 pc

Key Features

✅ Fits almost any standard wheelchair with a quick-release axle design
✅ Simple installation—convert a manual wheelchair into powered mobility in minutes
✅ User-friendly joystick control for speed, turning & braking
✅ Built-in gearbox & braking system
✅ Programmable parameters for speed, acceleration & deceleration
✅ Lightweight wheels & aviation-safe lithium battery
✅ Easy charging from joystick or battery charge port

Specifications

Drive Unit

• Drive System: Rear Wheel Direct Drive

• Hub Motor: 24V 140W × 2

• Motor Speed: 3000 RPM

• No-Load Speed: 69 RPM

• Gear Ratio: 43.2:1

• Control System: Joystick controller

• Power Module: Included

• Electromagnetic Brake: Yes

• Brake Torque: 1.5 Nm

• Maximum Speed: 4 mph (6.4 kph)

• No-Load Current: ≤2.0 A

Battery & Charger

• Battery Type: Li-Po 24V 6Ah (10Ah/12Ah optional)

• Battery Weight: 2.0 kg

• Continuous Travel Range: 15 km with 24V 6Ah battery

• Rear Wheel Size: 24 in

• Charging Time: 4 hours

• Charging Ports: Joystick & battery module

Capacity

• Unit Weight (no battery): 4.8 kg per wheel

• Load Capacity: 165 kg (364 lbs)

• Manual/Electric Switch: Yes

Operation Guide

1. Rotate motor cap to ON to switch wheelchair into Drive mode.

2. Push joystick forward to move, left/right to turn, and pull backward to reverse.

3. Rotate motor cap to OFF to return wheelchair to manual mode.
