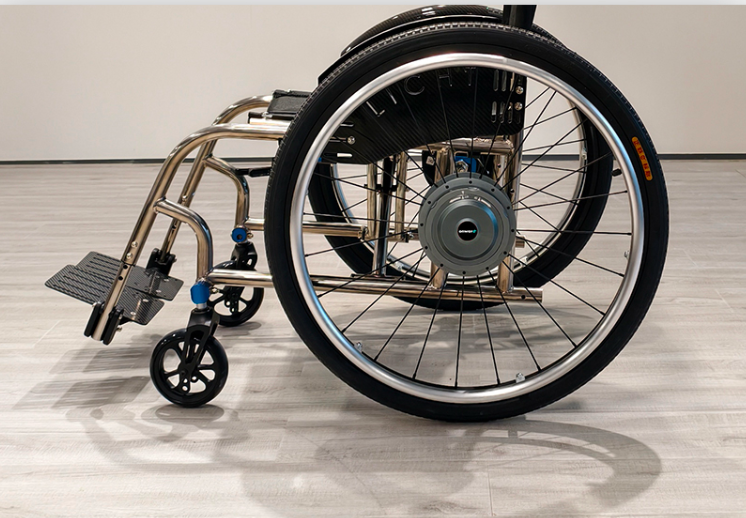

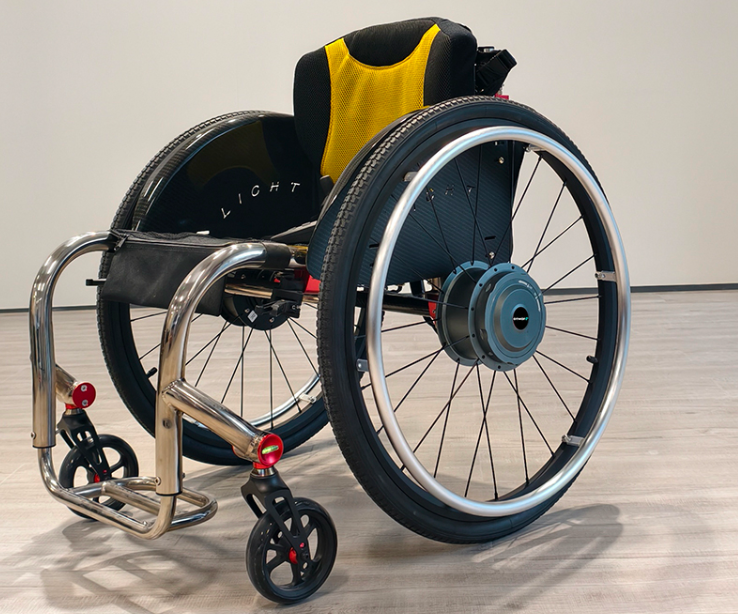

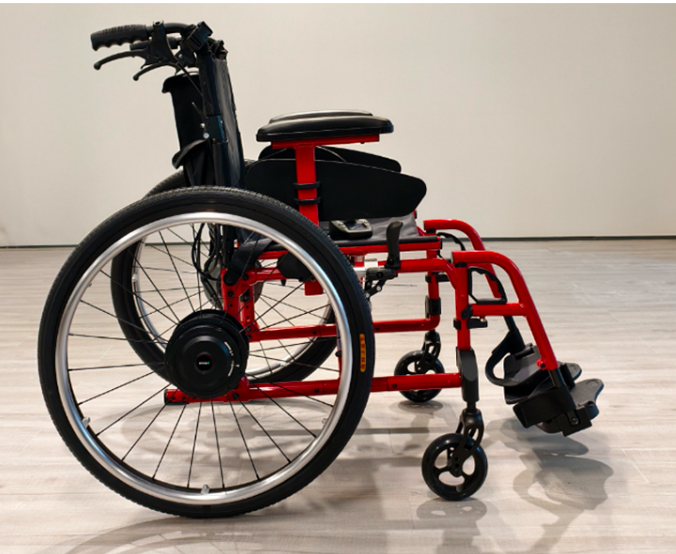

The Onward Hub Motor Wheel Set is a complete power assist wheels kit that turns a manual wheelchair into a powered ride in minutes. If you've been searching for power assist wheels for a manual wheelchair, an electric wheel attachment for a wheelchair, or a wheelchair hub motor upgrade, this all-in-one set replaces your rear wheels with motorized hub-motor wheels and adds simple joystick control — no new wheelchair required.

Turn a manual wheelchair into a powered ride with the Onward Hub Motor Wheel Set, from our power-assist collection. Aviation-friendly and lightweight, it installs onto a standard wheelchair.

Onward Hub Motor Wheel Set included

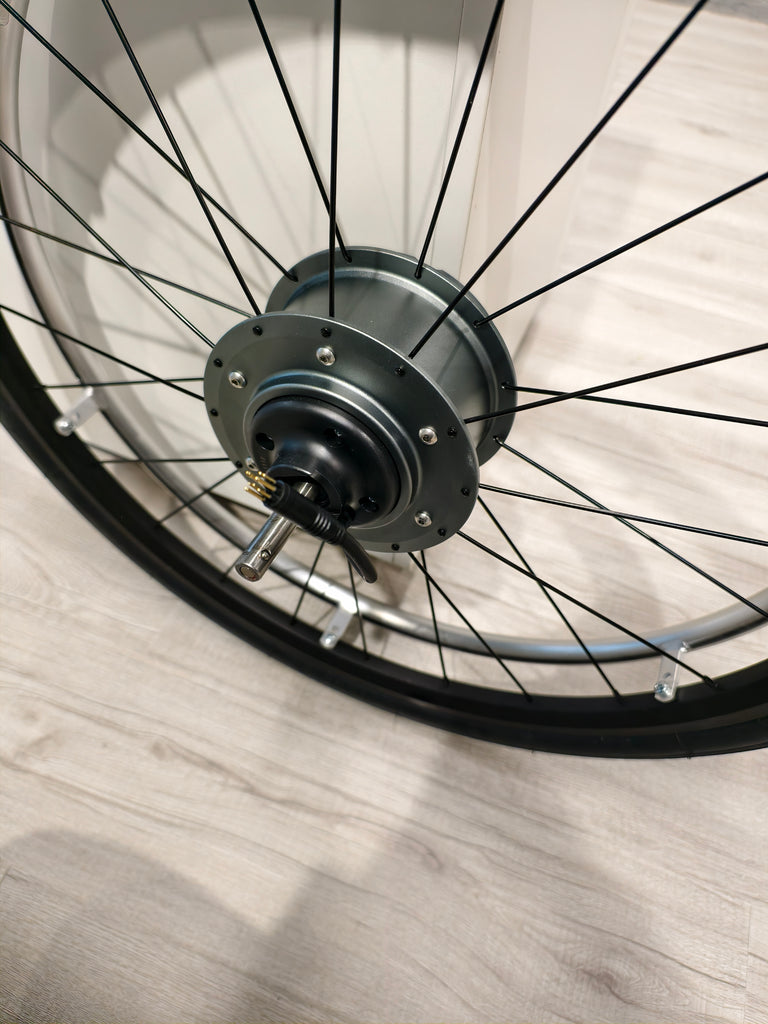

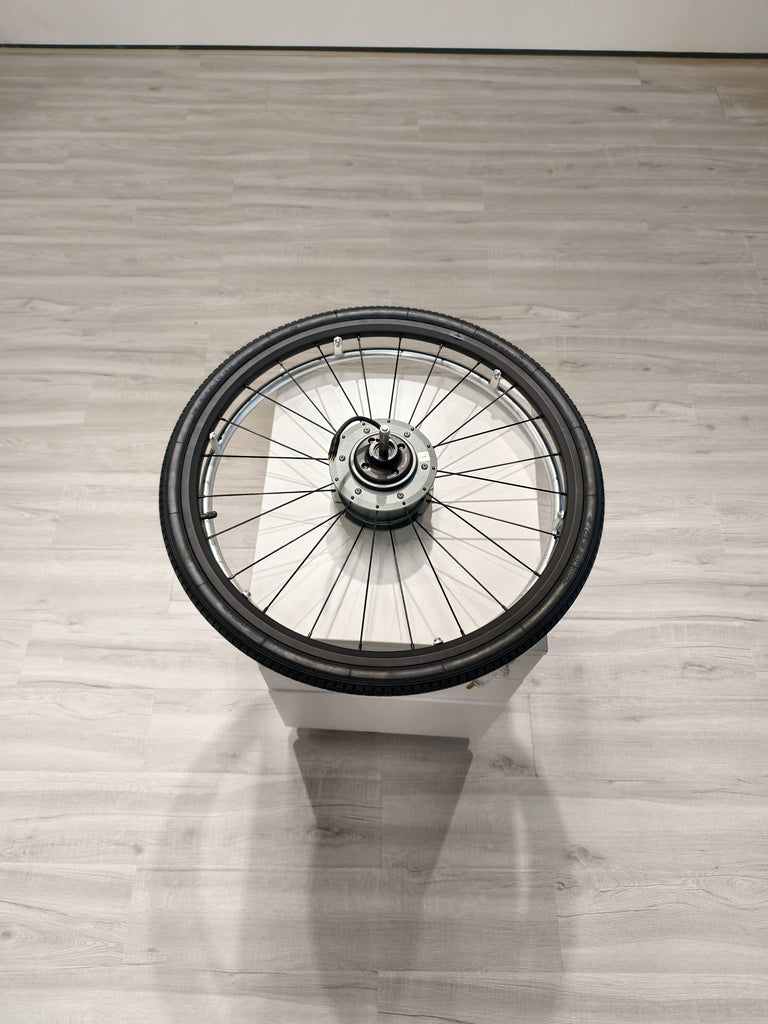

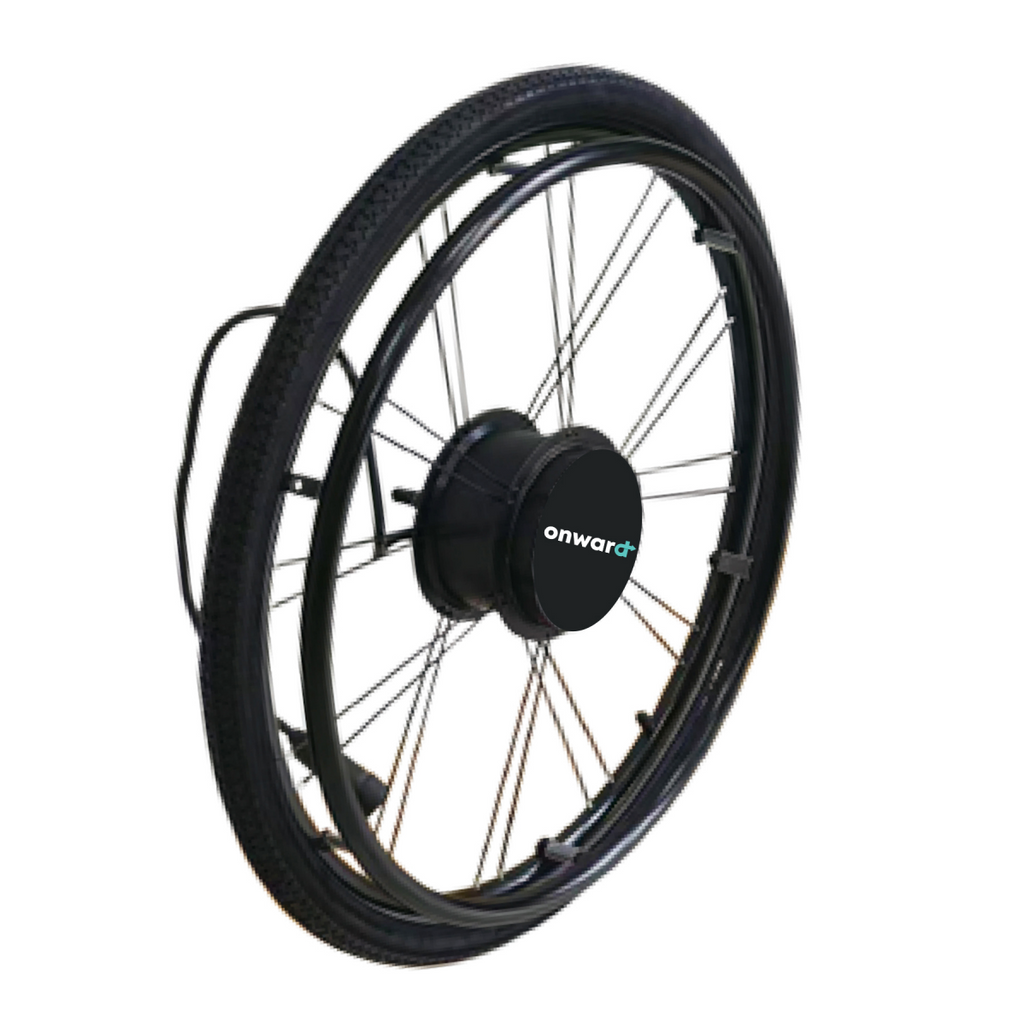

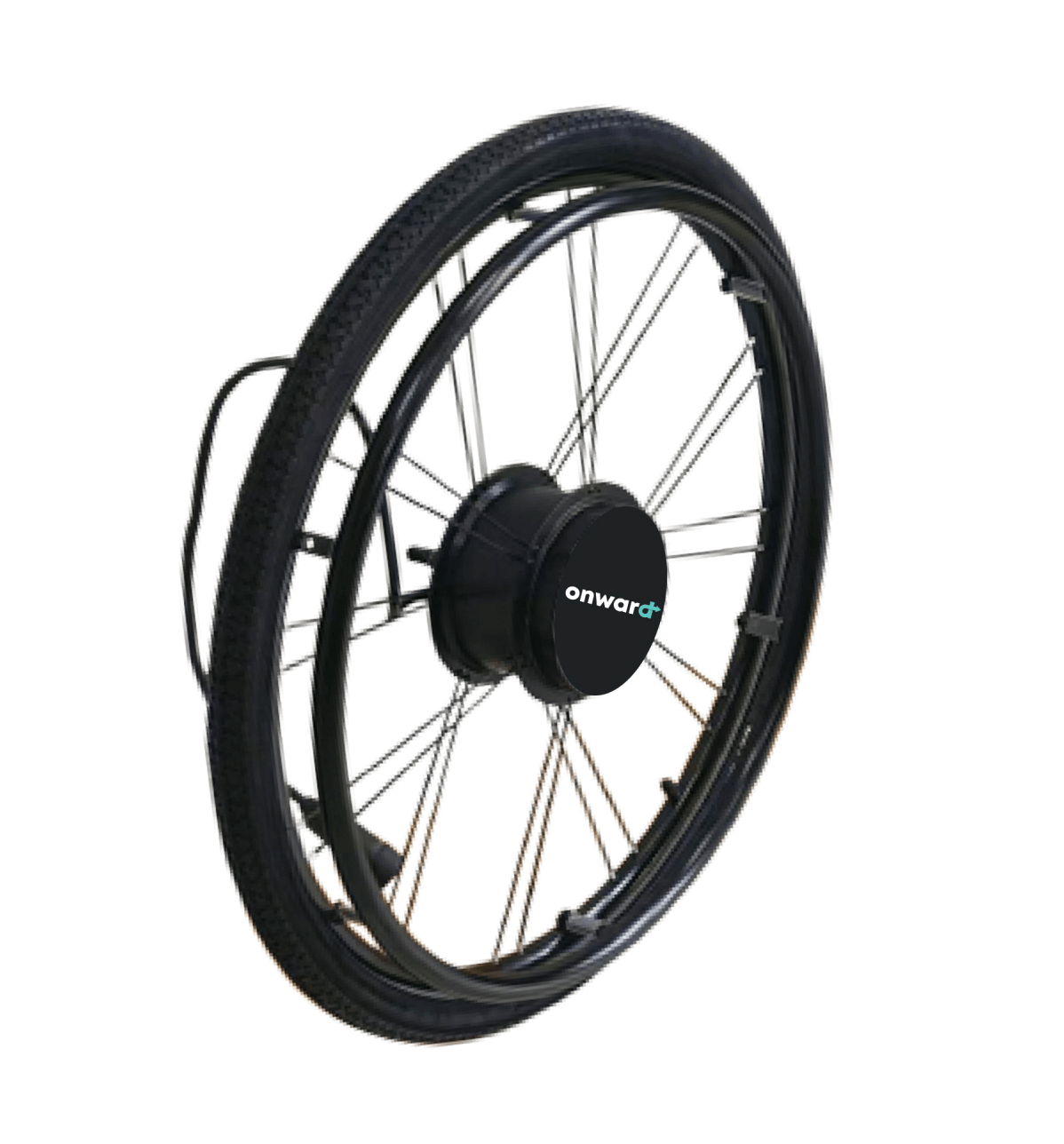

• Hub motor wheels-2pcs
• Axle Sleeve with Mount Bracket-2pcs

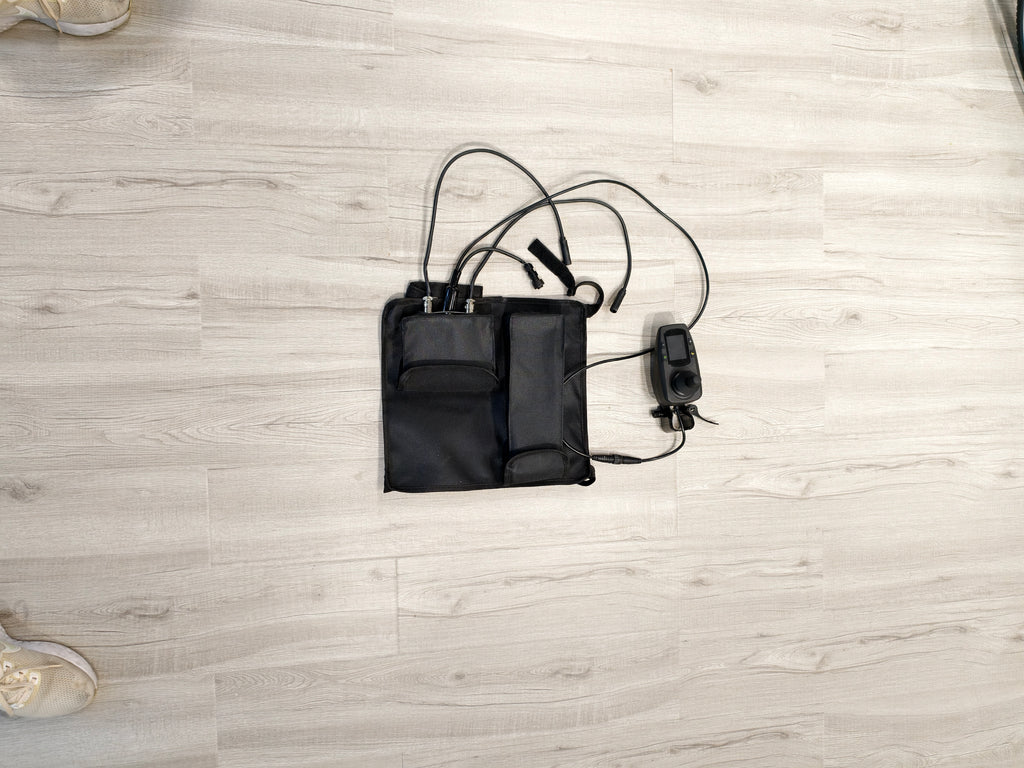

• Backpack For Power Module & Battery-1pc
• Joystick Controller-1pc
• Joystick Mount Bracket-1pc
• Power Module-1pc
• Li-Po 24V 6AH Battery-1pc

Installation SOP

1. Remove the original axle sleeve of the wheelchair and put the new sleeve with mount bracket on.

2. Put the hub motor wheel set onto the wheelchair, making sure the sleeve bracket fits into the slot of the motor hub correctly.

3. Fit the backpack onto the seatback, plug the motors into the controller power module as indicated on the wire harnesses.

Operation Guide

1. Rotate the motor cap to 'ON' to switch the wheelchair into Drive mode.

2. Push the joystick forward to go forward, push right and left to turn, pull backward to go backward.

3. Rotate the motor cap to 'OFF' to switch the wheelchair into Manual mode.

Outstanding Features:

- Aviation-friendly Li-battery

- Easy charging from both joystick and battery charge port

- Wide range of riders

- Built-in gearbox & braking system

- Programmable parameters including speed, turning, and deceleration

- Super lightweight wheels

Frequently Asked Questions
